L3Harris GPNVG-18 (Ground Panoramic Night Vision Goggle)

L3Harris GPNVG-18 (Ground Panoramic Night Vision Goggle)

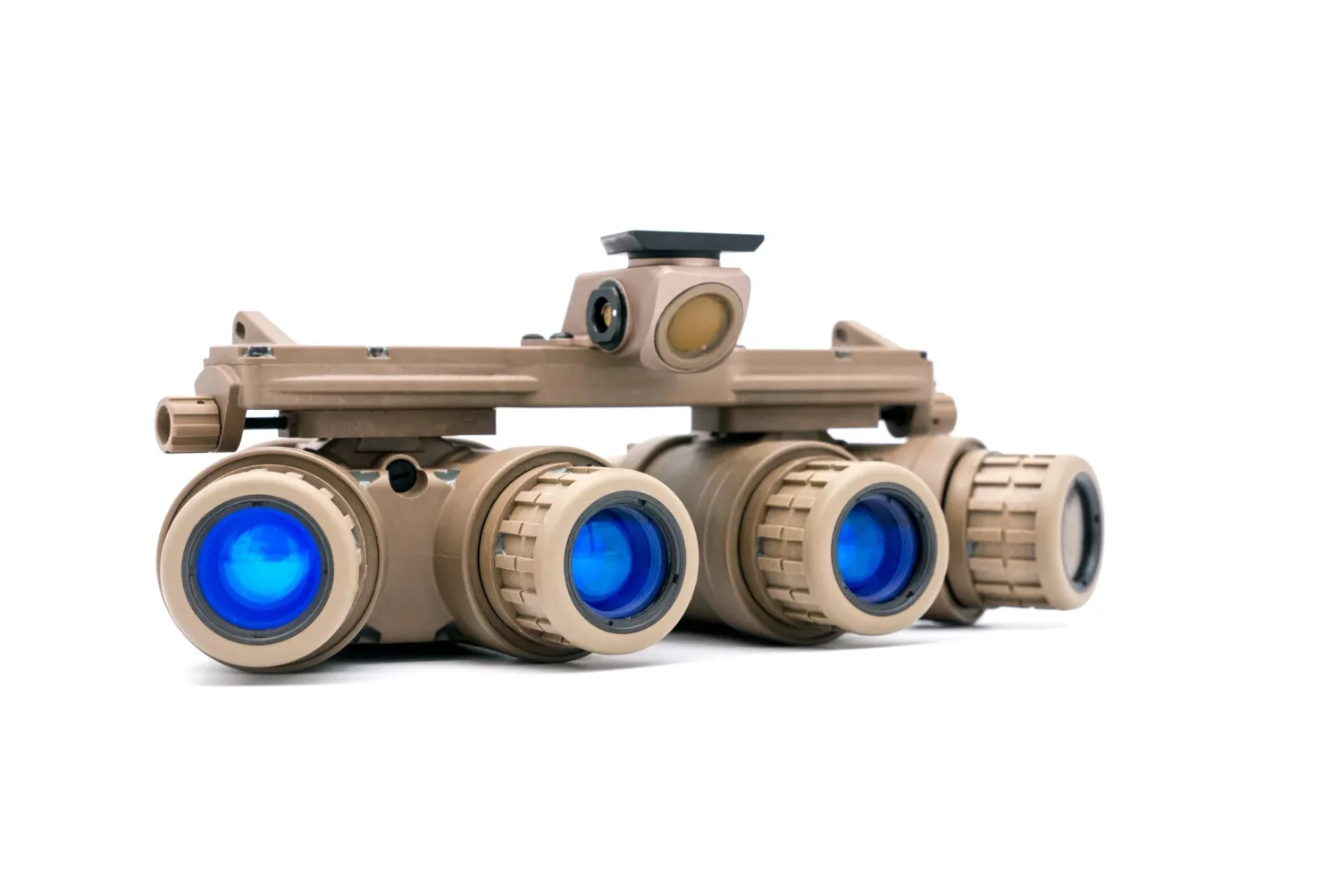

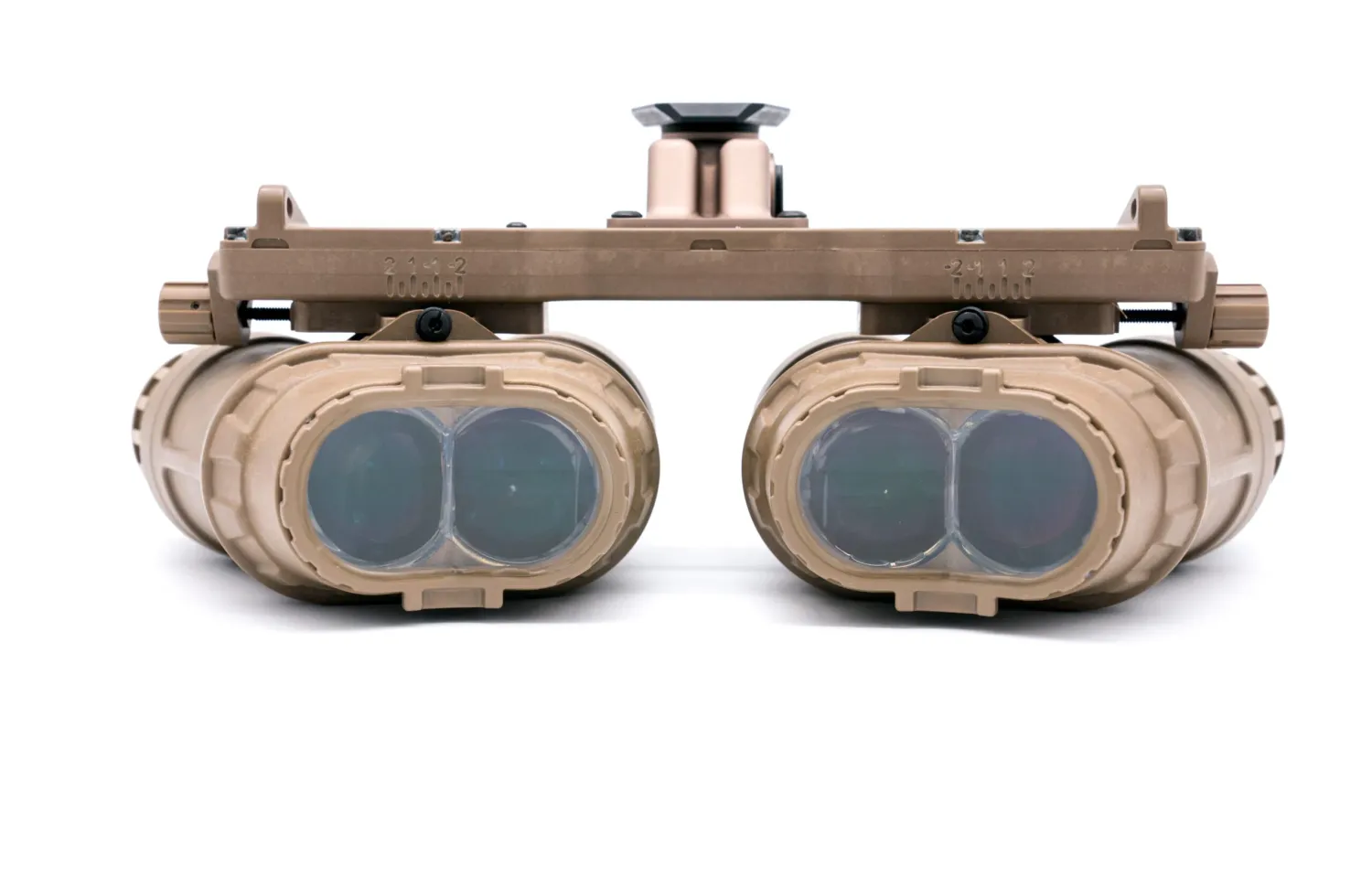

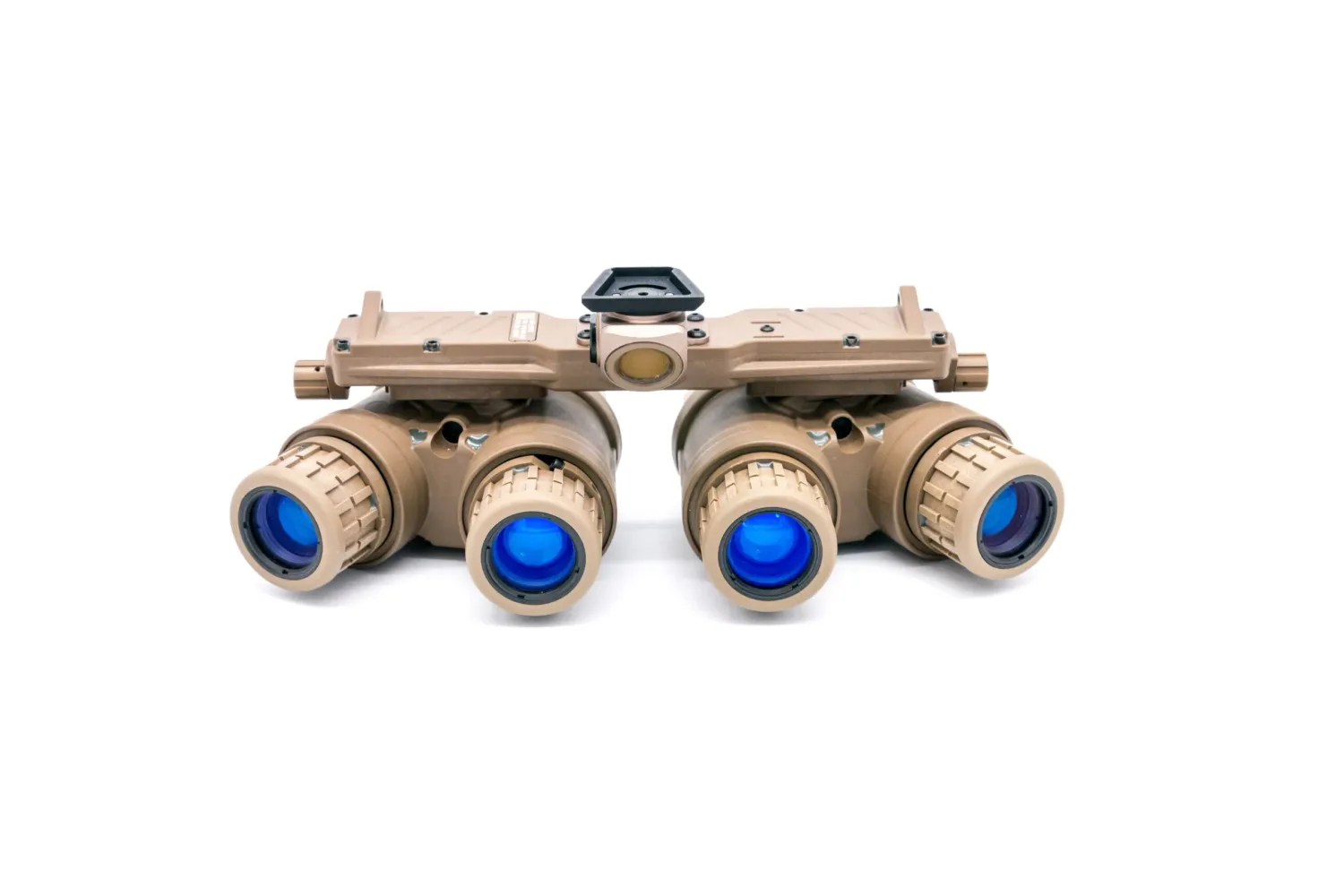

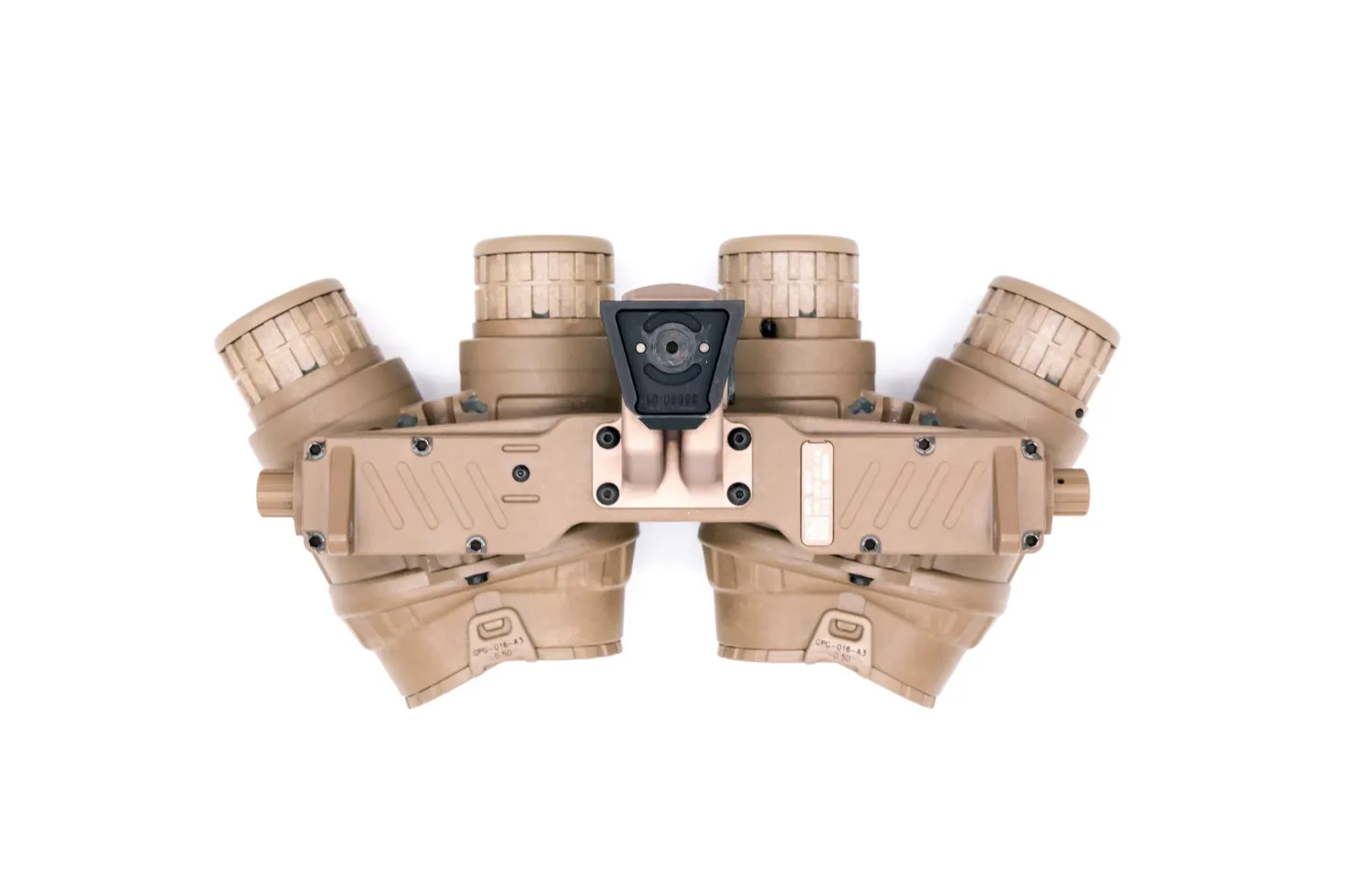

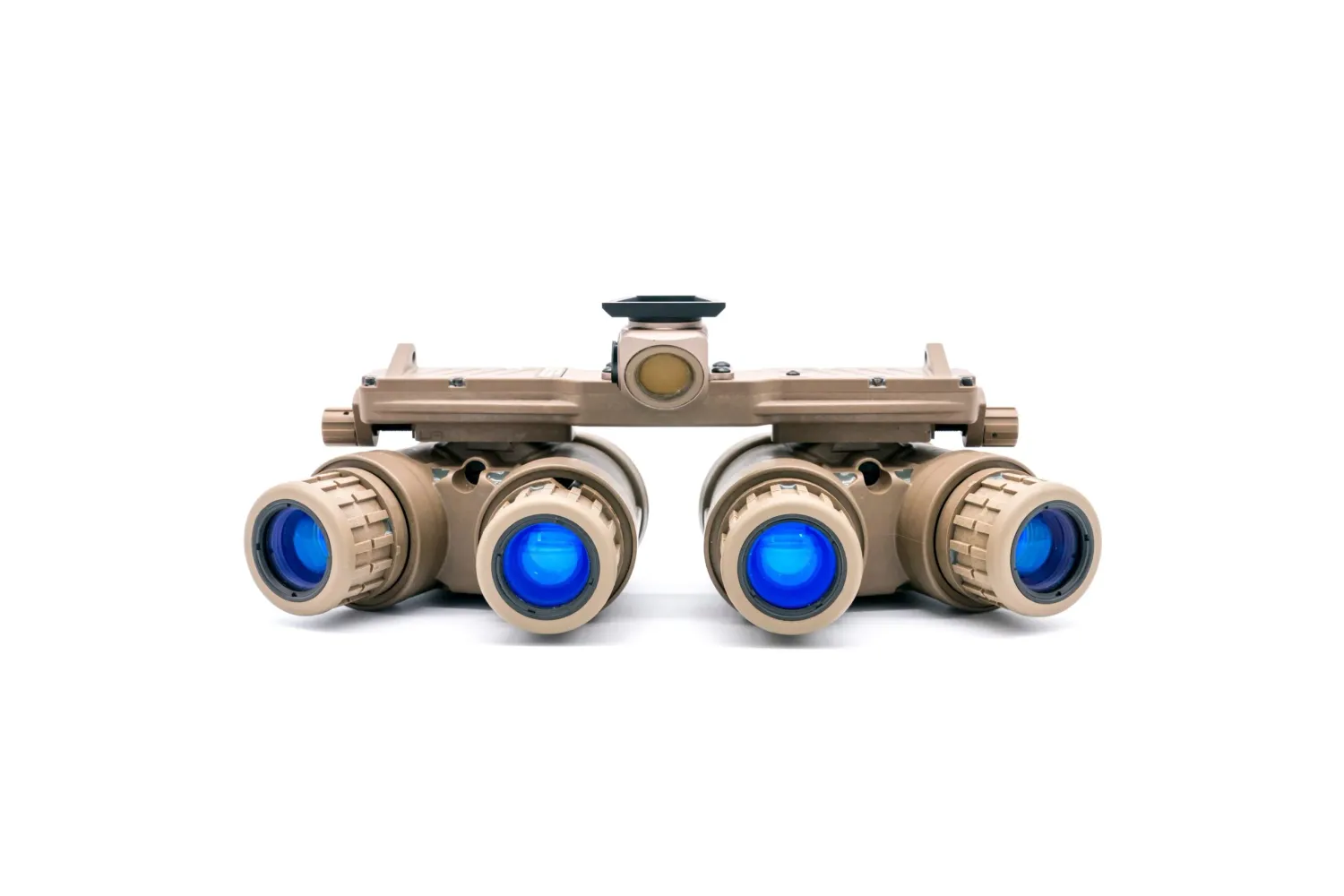

The L3Harris GPNVG-18 (Ground Panoramic Night Vision Goggle) is an extremely light weight panoramic night vision goggle. The GPNVG was designed by L3 in conjunction with USSOCOM to provide operators a wider field of view in a light weight and rugged package. The unit features 97 degree panoramic field of view four tube pano design, a battery pack, and incredible tube resolution.

The GPNVG-18 can be run both off of the included CR123 battery pack or a cold weather PVS-31 batter pack. One great thing about the ability to run a battery pack is the speed in which the goggles can be up and running. With the GPNVG, the user simply can drop the dovetail on a Wilcox G24 mount and plug in the battery cable to the battery pack port on the GPNVG housing and use their goggles.

The GPNVG-18 has a fixed bridge housing with independently detachable optical pods. This lets the user deploy a single optical pod for handheld applications with a wider field of view than a traditional monocular night vision device. When an optical pod is detached from the bridge it is powered off of the included battery power adapter.

Tube Specs

The GPNVG-18 uses L3Harris Unfilmed White Phosphor autogated image intensifier tubes with a 2376 min FOM rating from the factory. These unfilmed tubes provide incredible clarity, low light and high light performance, and increased depth perception. These are L3’s most advanced intensifier tubes and offers significant performance increases over other white phosphor systems.

2376 minimum FOM Unfilmed White Phosphor :

• FOM: 2376 minimum
• Milspec Spot Spec: can have max 4 spots per tube larger than .003″, no spots larger than .003″ in zone 1. Spots

Kit Includes:

-GPNVG-18 night vision goggle

-GPNVG battery pack & cable

-Soft bag

-Hard case

-Accessory kit
